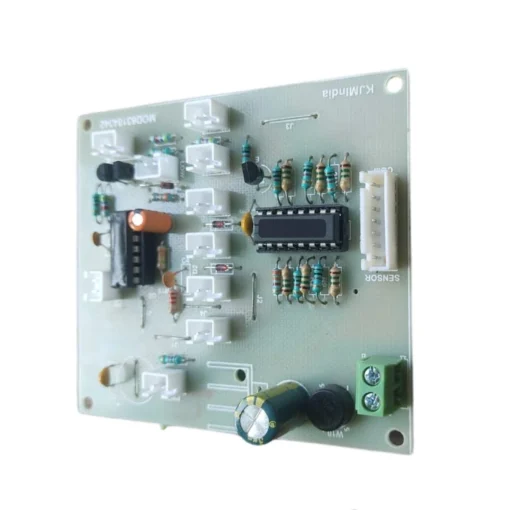

5 Levels Water Indicator Circuit Board With A Full Tank Alarm | Zero Corrosion | Low Level LED Indicator

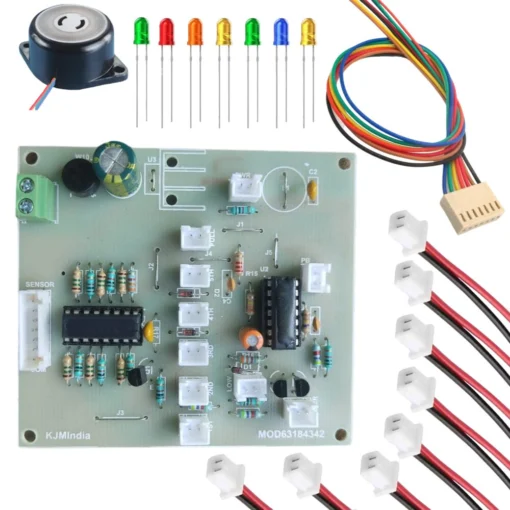

Package Includes:

1. Ready-made kit
2. 1 Buzzer
3. 6 LEDs (3mm)
4. one 7 pin rmc
5. Eight 2 pin rmc

• This is a 5 levels water level indicator with a full tank alarm.
• We can use it as 3 level to 5 levels indicator by using 4 core to 6 core cable.
• Once the level of the water falls below the 1st level, the low level LED will start to blink. LED continues blinking until the level of the water touches the 1st level.
• When the level of the water reaches the top position, blue colour LED will light up with a continuous alarm.
• This device can be kept ON all the time.
• This module requires a 9v, 500mA step down transformer. We can also use a 12v DC supply.
• Zero Corrosion.We can use SS metal sensors to sense the water level.
• This module has been tested upto 90 meters.
